034Motorsport Dynamic+ Tuning ECU Software UPGRADE - Audi B9/B9.5 RS4/RS5 EA839 2.9TT

All Dynamic+ tunes can now be flashed anywhere you please with the 034SPI (Smartphone Interface) Mobile Flashing application!

Designed for use on iOS and Android Devices as well as Apple Silicon-equipped laptops (M1, M2, M3), 034SPI allows you to easily flash your car, change fuel maps, configure live data displays, record and submit data logs to 034Motorsport's Tuning Support team, and utilize diagnostic support tools such as DTC/CEL code read/clear and more! Available now for use with any Dynamic+ ECU or TCU tune and the latest R4 Dynamic+ End User Flashing Dongle (May 2023 & Newer)! Download via the Apple App Store or Google Play Store Today!

Detailed Flashing Features:

• Complete Any ECU Or TCU Tune Flash
• Quickly Flash Different Fuel Octane Or Transmission Files
• Flash ECU/TCU Using Mobile Device's Internet Connection
• Enhanced Flashing Protocol Protections For Increased Flashing Stability
• User-Configurable Live Data Displays
• Multiple Data Display Views
• Dozens Of Defined Variables Available
• High-Speed Datalogging Of Pre-Defined Variables
• Easy Upload Of Logs To 034Motorsport Server
• Datalog Analysis Services Available Free Of Charge
• Read & Clear DTCs On ECU & TCU
• View Emissions Monitor Statuses
• Perform Adaptations/Recalibrations*
  • *Available for limited platforms, coverage expanding regularly

Thermal Management Safety Strategies:

With increased power, comes increased heat. With increased heat, comes the need for additional management. For both charge air temperature and engine coolant temperature, 034Motorsport has implemented key safety features to keep your engine running optimally and safely in virtually any condition - just like the OEM calibration. Substantial effort was spent on balancing the trade off of charge temp for power, and improving the compressor efficiency so that it doesn't generate too much charge temp.

Charge Air Temp: When the charge temp exceeds 60*C there is a reduction in power output. When the charge temp exceeds 65*C there is a more significant reduction in power output. This charge temp limitation is there to prevent knock events from excessive charge temps, which can severely damage a motor. With these safety measures in place, you can confidently drive your car, from the top of Pikes Peak to Death Valley, knowing the factory ECU has optimal performance and safety covered.

Coolant Temp/Fan Strategy: From the factory, Audi likes to run hotter water temps to reduce fluid friction losses from cooler, more viscous oil. While better for efficiency, this strategy becomes a safety issue when loads and heat are increased. 034Motorsport calibrators have rescaled the coolant temperature targets and fan control strategies to target lower coolant temperatures when in higher heat conditions, allowing the car to run within a safe heat range rescaled for the added heat that comes from tuning the engine. Once again, this means that 034Motorsport calibrators have kept your confidence in safety fully intact from the OEM configuration.

Turbocharger Intercooler Pump Optimizations: The coolant pump that circulates water in the turbocharger intercooler system is now optimized to reduce Intake Air Temperatures faster and at a lower overall set point.

Launch Control Optimizations:

From the factory, conventional launch control strategies are not activated in the ECU. 034Motorsport’s skilled Calibration team has properly engineered and implemented true launch control functionality to the EA839 and AL552 ZF8. 034Motorsport engineers have refined and optimized the requested launch torque to ensure repeatable and consistent launches, capable of reducing 0-60 times by up to half a second depending on road conditions and tire grip. Unlike the factory ECU that tries to “push through the brakes” on a standing brake launch, the 034Motorsport Dynamic+ calibration will allow proper loading of the engine without pushing through the brakes as hard, and properly targets a specified RPM to launch at.

Fuel System Optimization:

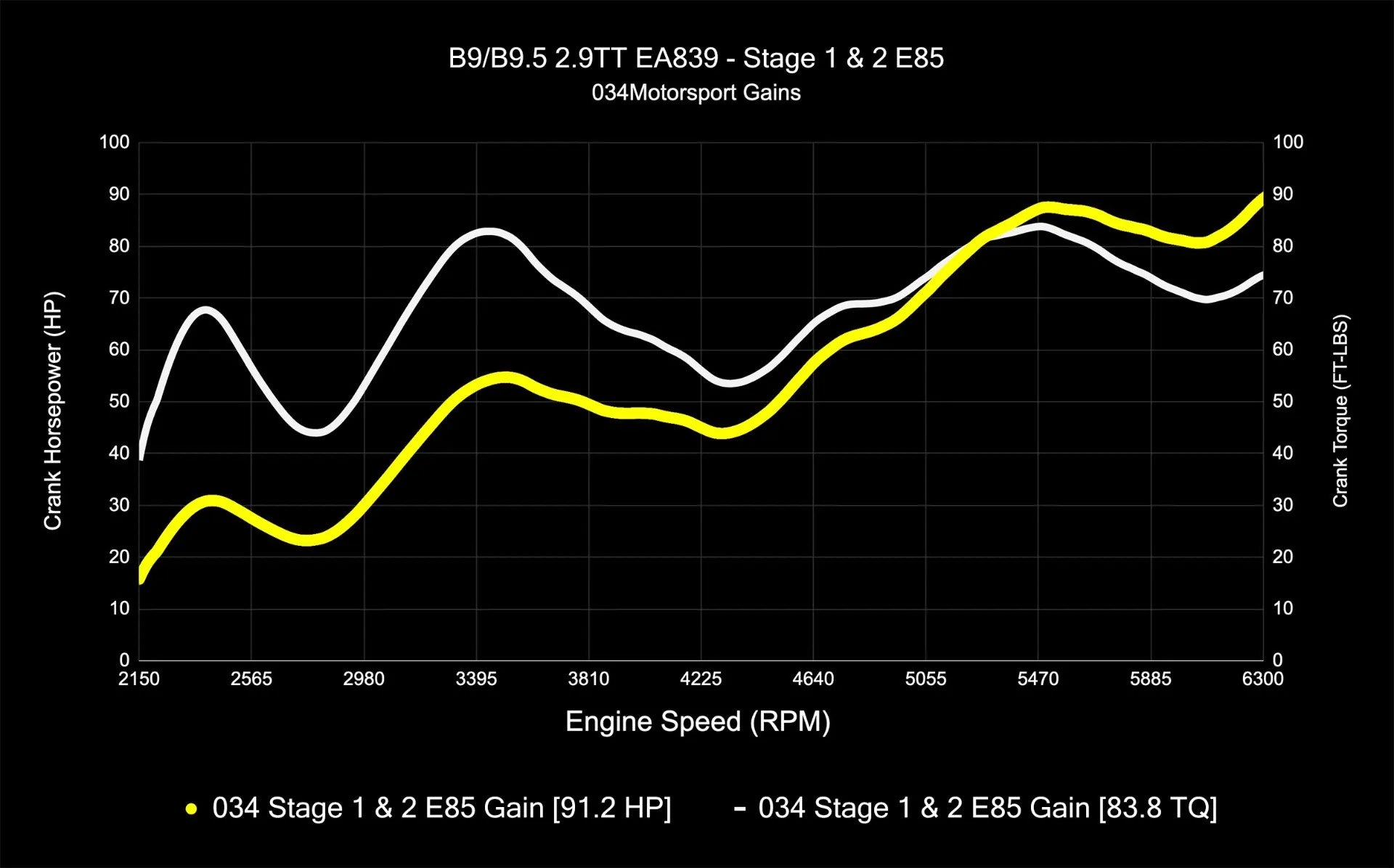

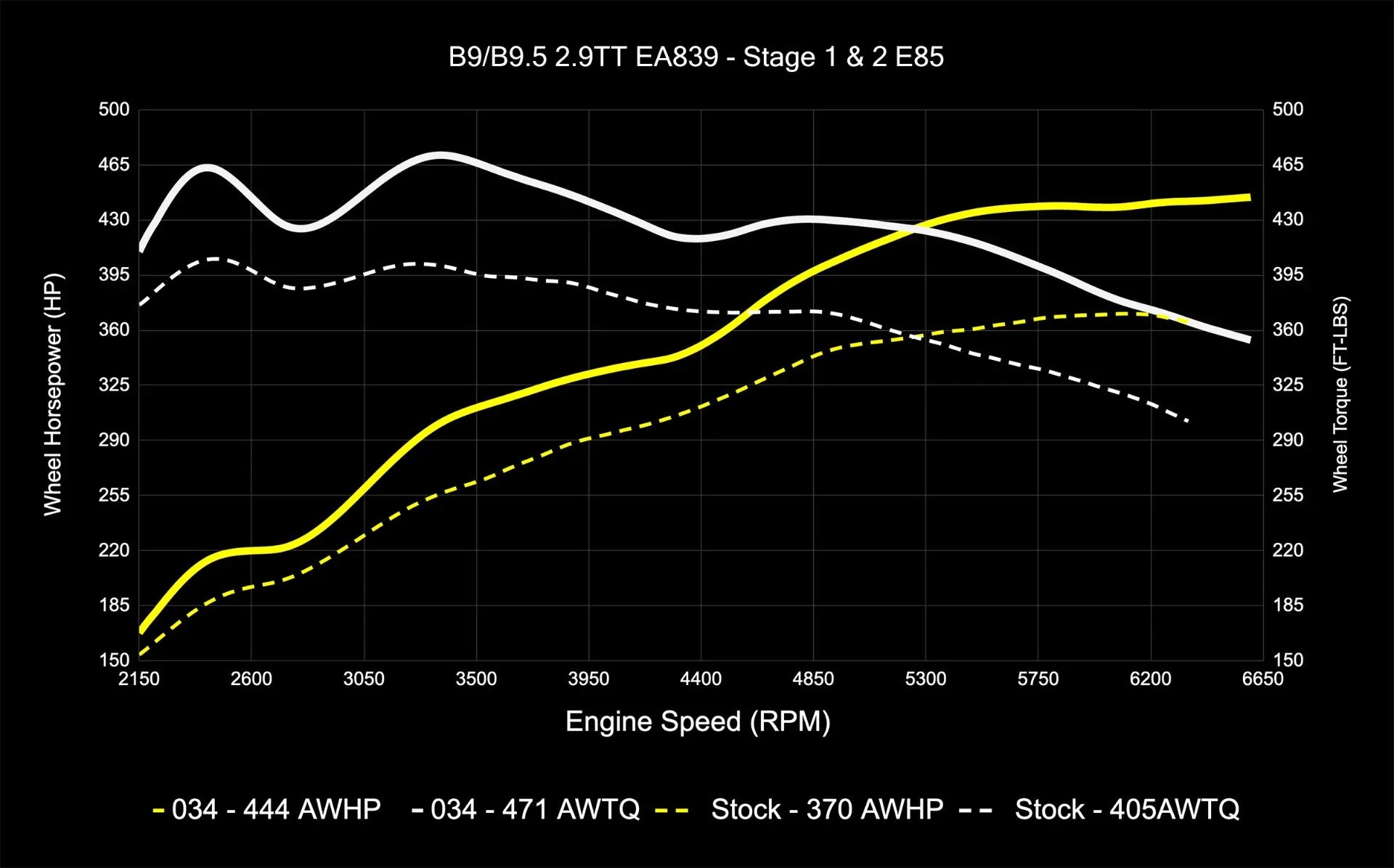

While E85 provides substantial increases in power, it requires about 30% more fuel than standard pump gasoline per ignition cycle. Utilizing a variety of fuel stratified injection strategies, 034Motorsport calibrators have further optimized the factory fueling system to be able to adequately support full E85 on factory hardware for Stage 1 tunes.

The main limiting factory in the 2.9TT fuel system is the factory high pressure fuel pump. 034Motorsport calibrators have optimized Stage 1+ files to add additional power while running E85 with the installation of an upgraded high pressure fuel pump.

In order to properly run 034Motorsport Stage 1+/2+ or Stage 3 files, you must be using an upgraded HPFP that has a 37% larger diameter piston over stock such as the 034Motorsport High Pressure Fuel Pump Piston Upgrade Kit.

Accurate Boost and Torque Reporting:

As with anything in life, it is always best to be truthful. This especially applies when it comes to reporting torque outputs in the ECU to the other control modules in the car, as well as displaying accurate boost readings to the driver via the boost gauge found on the Virtual Cockpit. With 034Motorsport Dynamic+ software, the ECU is reporting accurate torque values to critical systems like the TCU to ensure that all safety systems are intact in both control units, and the added torque from tuning is properly adjusted for when driving/shifting, including all safety systems designed to protect the engine and transmission

Enhanced Crackles in Dynamic Mode

Crackles are further enhanced in Dynamic mode! They can be toggled on or off via Drive Select. They will be on in Dynamic and off in Comfort. In Individual, crackles can be toggled on or off via Engine Sound. *No-Crackle Files Available Upon Request. Please Email Tuning@034Motorsport.com for More Information*

Valved-Exhaust Delete Compatibility

This ECU tune allows for full performance when using aftermarket exhausts without exhaust flaps, or OEM exhaust with valves unplugged. Without this feature, running your car with the exhaust flap controller unplugged/with cancellers installed would result in derated performance.

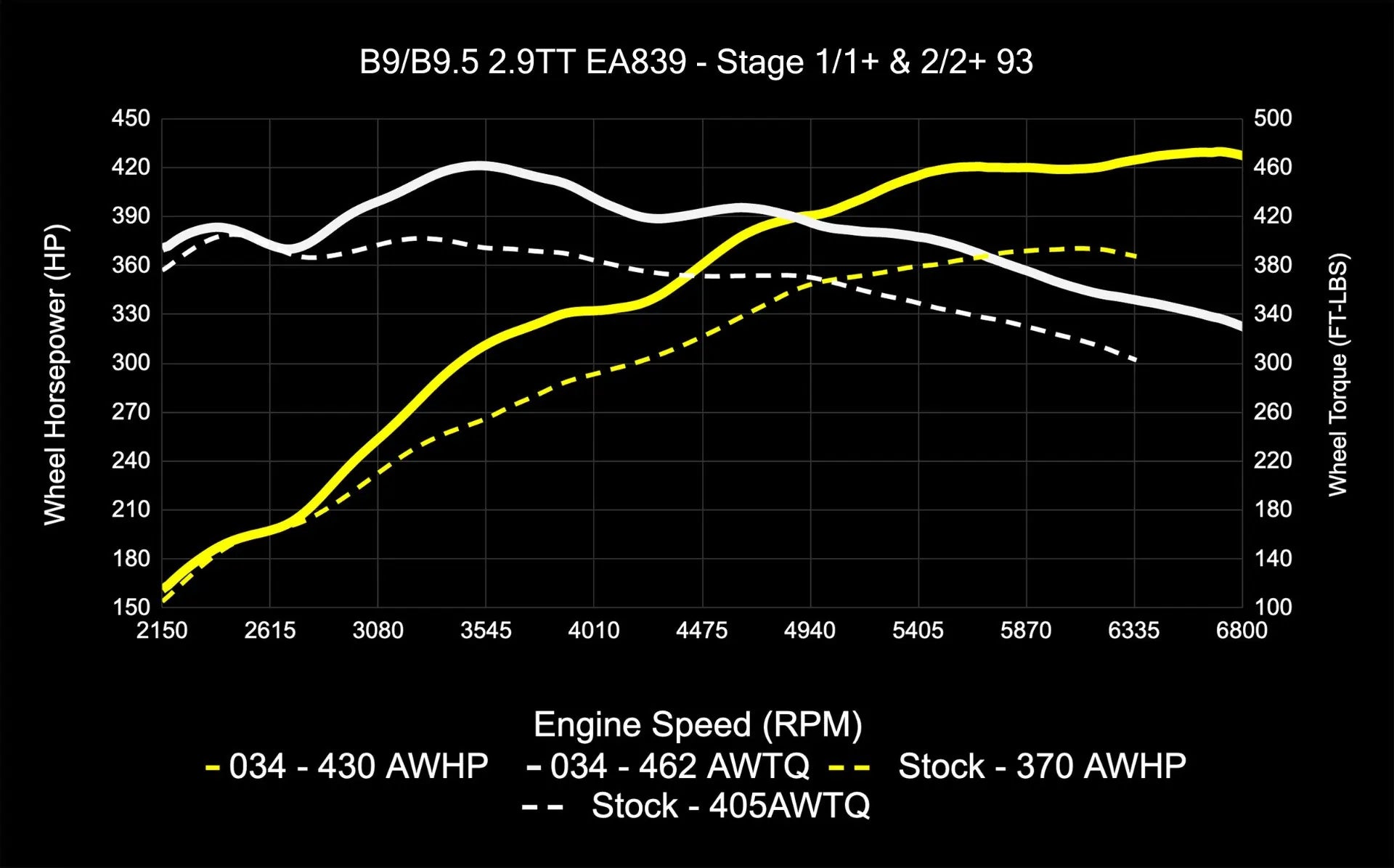

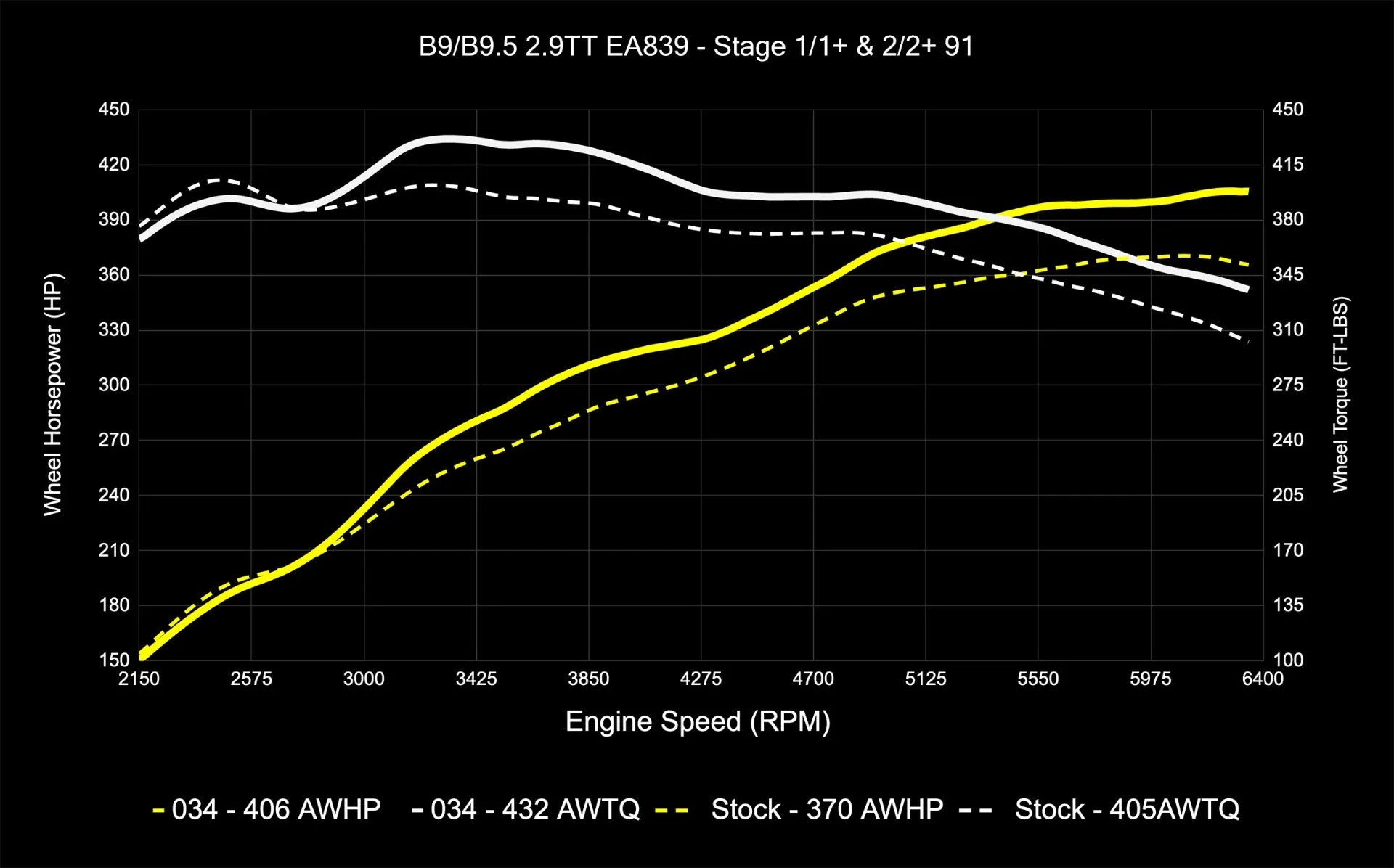

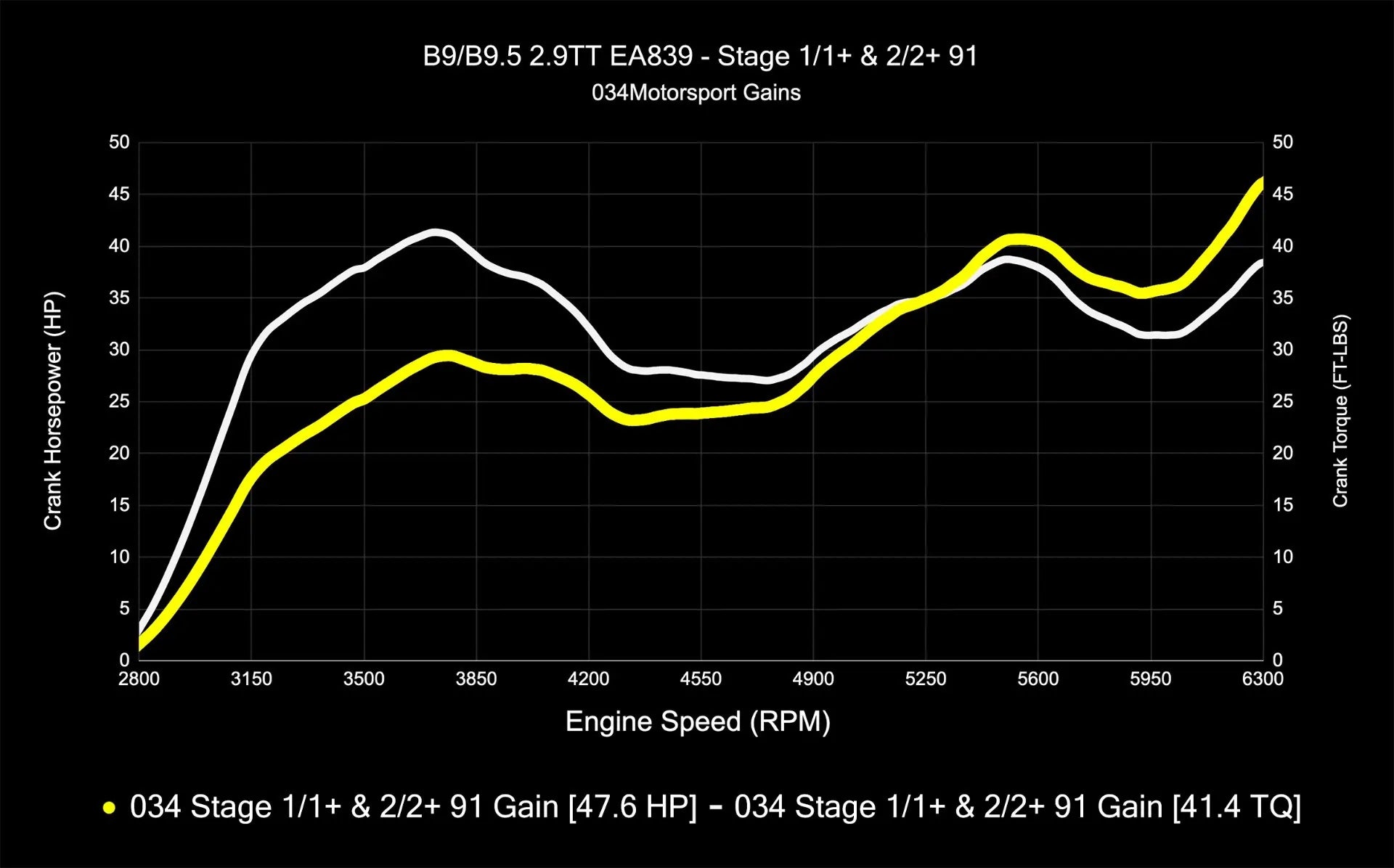

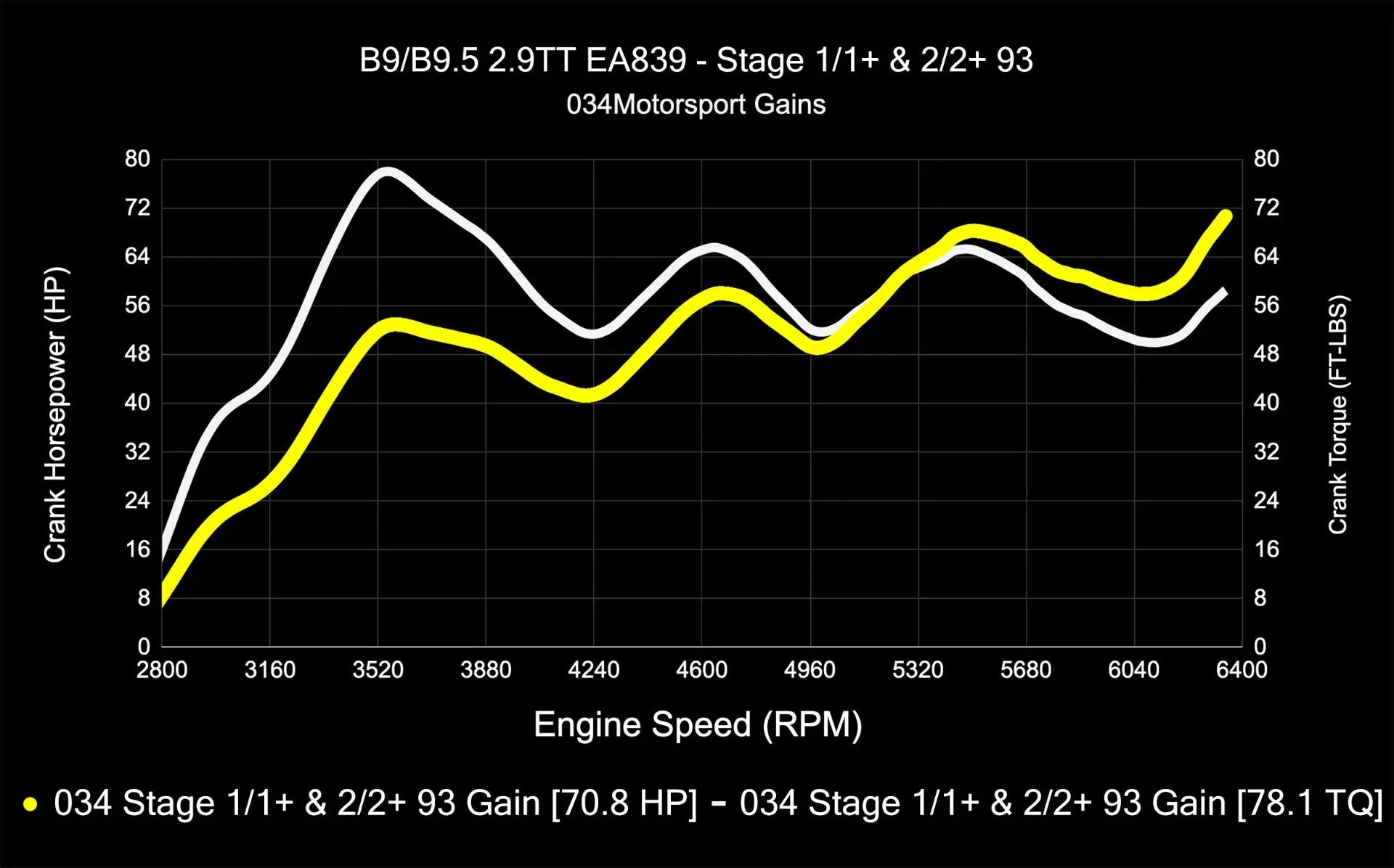

Volumetric Efficiencies and How to Optimize for Them:

Volumetric efficiency (VE) is how well a motor can move air/fuel in and out of it’s combustion chamber, the higher the efficiency, the more of the air/fuel can be converted to torque and power. Every engine has a volumetric efficiency that varies with RPM. For this reason, every internal combustion engine has torque that varies with RPM; some motors, thanks to advanced features like variable valve and camshaft timing, can create exceptionally flat torque curves across a broad range of RPM simply due to optimizing VE using these advanced control features. Despite this ability, every modern engine, especially with forced induction, will have torque values that vary across the RPM band. In the case of the 2.9TT EA839, there is a dip in VE at 3000 RPM, or said a different way, VE is very efficient from 2-2500 RPM, and continues to be very efficient by 3500 RPM, but drops to a slightly lower level at 2700-3000 RPM. For reference, all of our dyno charts show a dip in TQ around 2700-3000 RPM for this very reason. It is important to note that this isn’t a problem with the tuning, and we could have very easily smoothed out the torque curve in our charts to minimize this, but we chose to leave it for the sake of accuracy and transparency.

The normal VE drop at 3000 is substantial, and more than what our final power numbers suggest, but instead of smoothing the curve to hide this, we chose to tackle it head on using our tuning expertise and technical mastery calibrating these ECU’s. A way to combat the VE drop is to increase boost through this region, but instead of simply turning up the boost using the boost control strategy, we re-engineered the ECU’s torque request function to target a higher TQ through this region. The result is more power and torque using the ECU’s factory control strategy, which keeps all factory ECU functionality and safety features in place. Ultimately we are able to make the dip less than the natural VE by raising boost a safe amount, but boost cannot make up all the difference. What we have done is optimized in performance, safety and functionality - just as if the factory had done it.

Keen observers will note that this dip is present in other company’s advertised charts too, but greatly smoothed over and reduced visually, so buyers should be aware. This dip is in the VE of the motor, it’s normal for all engines, and there is no reason to hide it or be anything less than transparent and honest about this motor’s performance.

Improved Torque Management

As with any automatic transmission vehicle, the ECU and TCU computers work synchronously to properly apply torque to the vehicle's drivetrain in a safe and reliable manner. Within both the ECU and TCU, there are factory safety tables that limit overall torque output based upon what the factory first tuned the car for. The ECU reports the output of torque from the engine to the TCU, and the TCU decides if this is suitable, or too much. If it is too much, the TCU will command the ECU to reduce torque output based upon its safety tables.

034Motorsport takes a holistic approach with its Dynamic+ Tuning, and aims to retain as many OEM safety protocols as possible. While it is possible to tune around the factory TCU torque limiters from the ECU side, this is done at the expense of torque safety features that are integral in keeping your transmission running safely. 034Motorsport’s calibrators tune the ECU to work with the TCU to provide accurate torque values, and recalibrate the appropriate safety ranges for the TCU. Taking these extra steps to retain OEM safety systems on the ECU and TCU side is just one of the many reasons that Dynamic+ software provides substantial yet reliable performance increases.

Optimized Shift Points

In order to take advantage of the increased powerband from the turbochargers, Dynamic+ Tuning optimizes the shift points in all driving modes to maximize acceleration during wide open throttle scenarios.

Improved Shift Speeds

To further enhance the acceleration of your Audi, the ZF8 shift times are dramatically decreased in all driving modes, which ultimately results in quicker acceleration. Shift times are now up to 70% faster!

Shift pressures are also increased in Sport Mode to maximize performance. In Sport Mode, you will notice less lazy shifts, more firm shifts, which ultimately results in quicker acceleration.

AMAX Shifting

AMAX Shifting is a shifting strategy that stands for “Acceleration Maximum.” These gear shifts are the fastest and quickest possible for optimal acceleration . These are activated in shifting after launching your vehicle from a stop using launch control.

AMAX is now activated in the 4-5, 5-6, and 6-7 shifts where it was previously disabled from the factory.

When in AMAX mode, line pressures in the transmission have been optimized to safely increase shift speeds.

Increased Launch Stall RPM

The launch stall RPM has been raised for a significant increase in force, allowing you to get off the line as fast as possible.

Delay Time Between Launches Reduced

The delay time between launch control activations has been shortened. This is useful when drag racing to heat up tires using launch control, and re-activate quickly before launching down the drag strip!

034Motorsport B9 Audi RS4 & RS5 AL552 ZF8 TCU Stage Descriptions:

Upgraded High Pressure Fuel Pump Optimization:

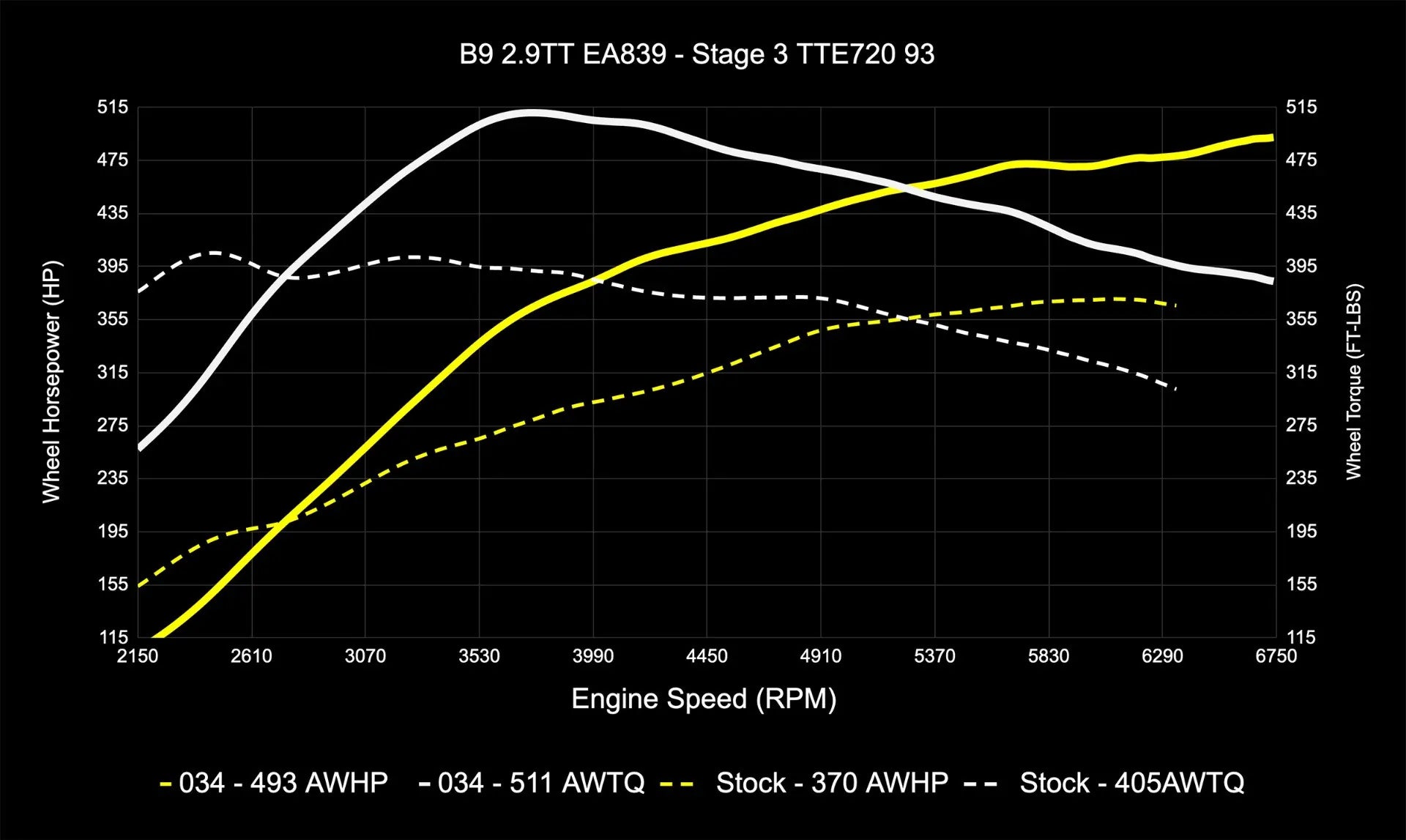

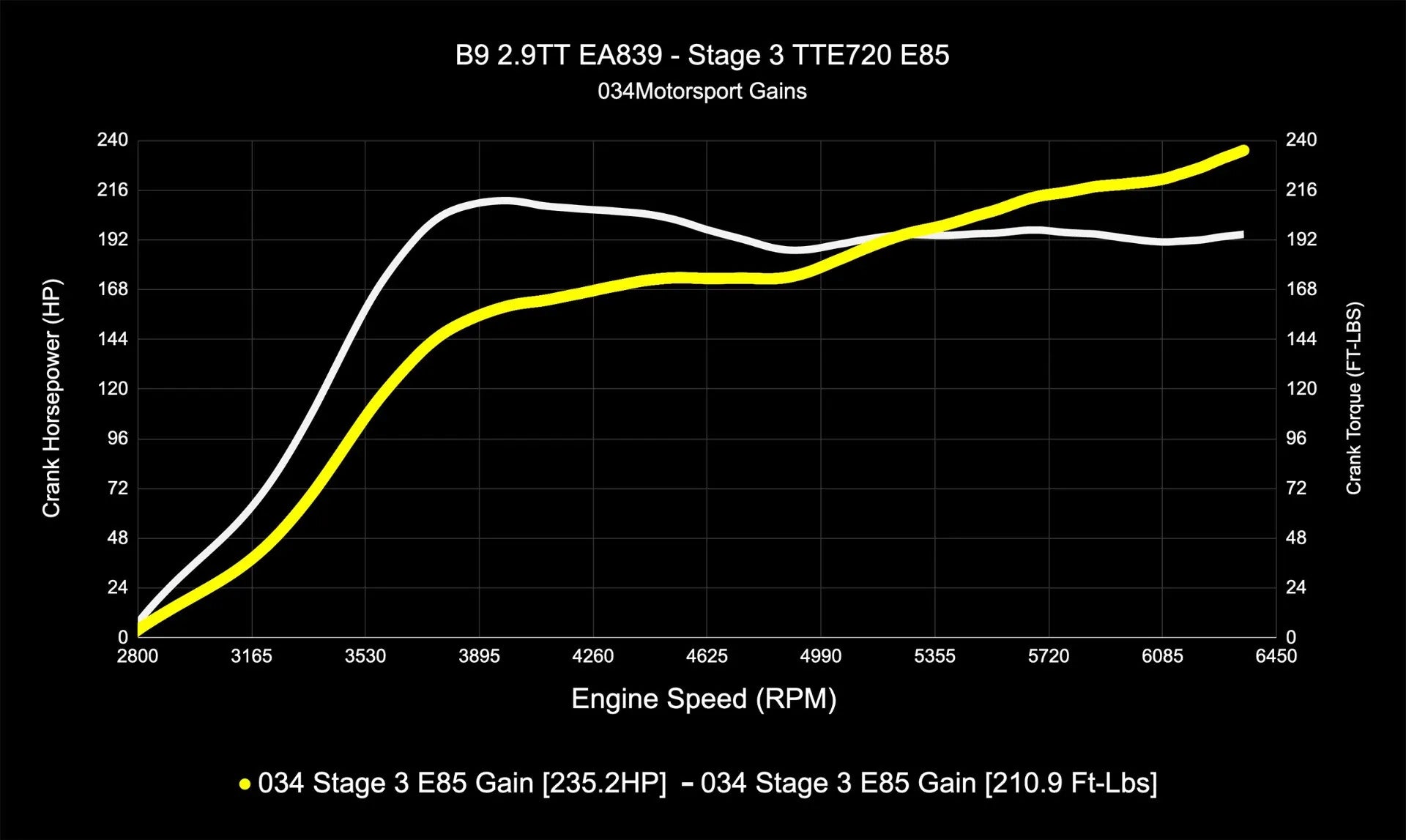

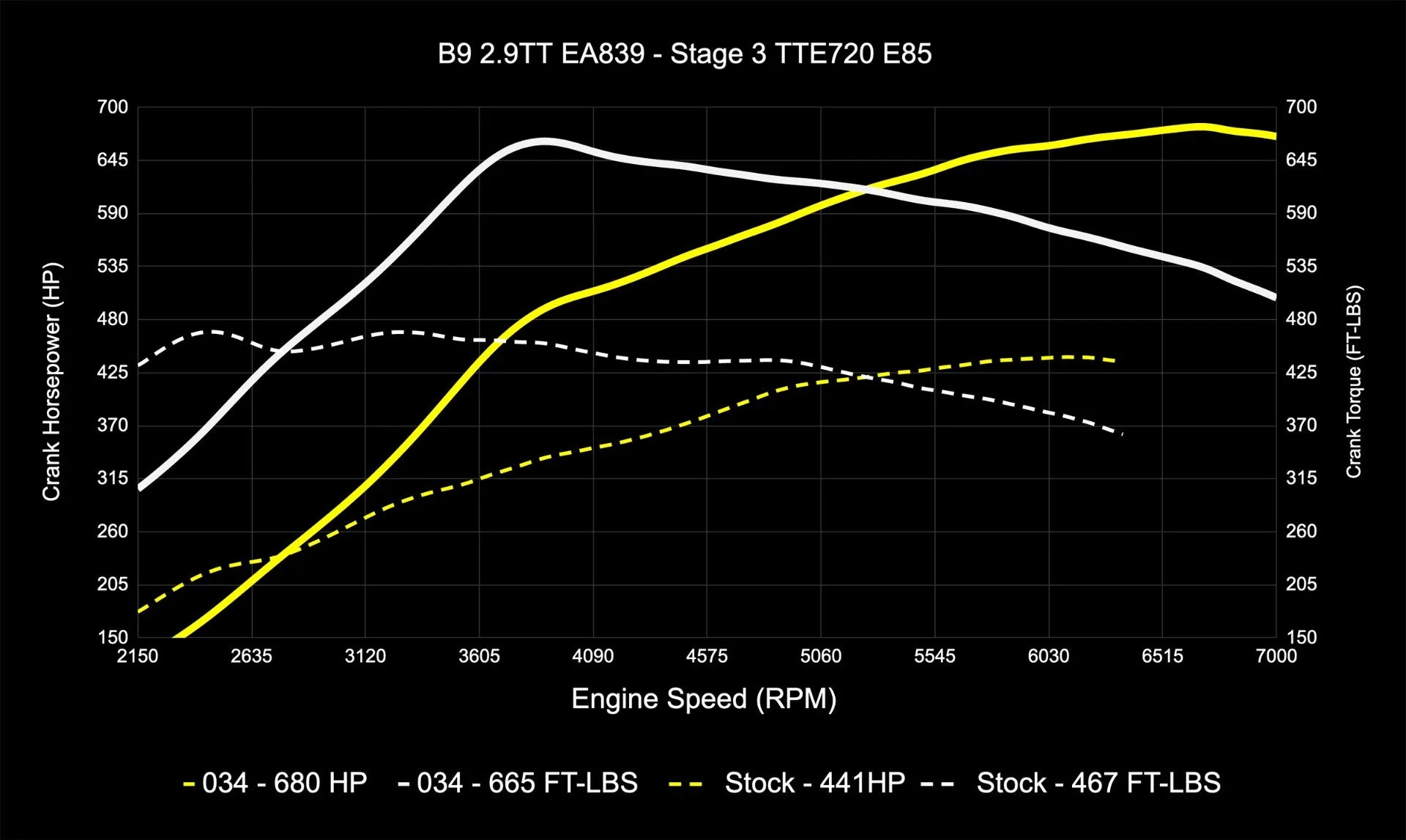

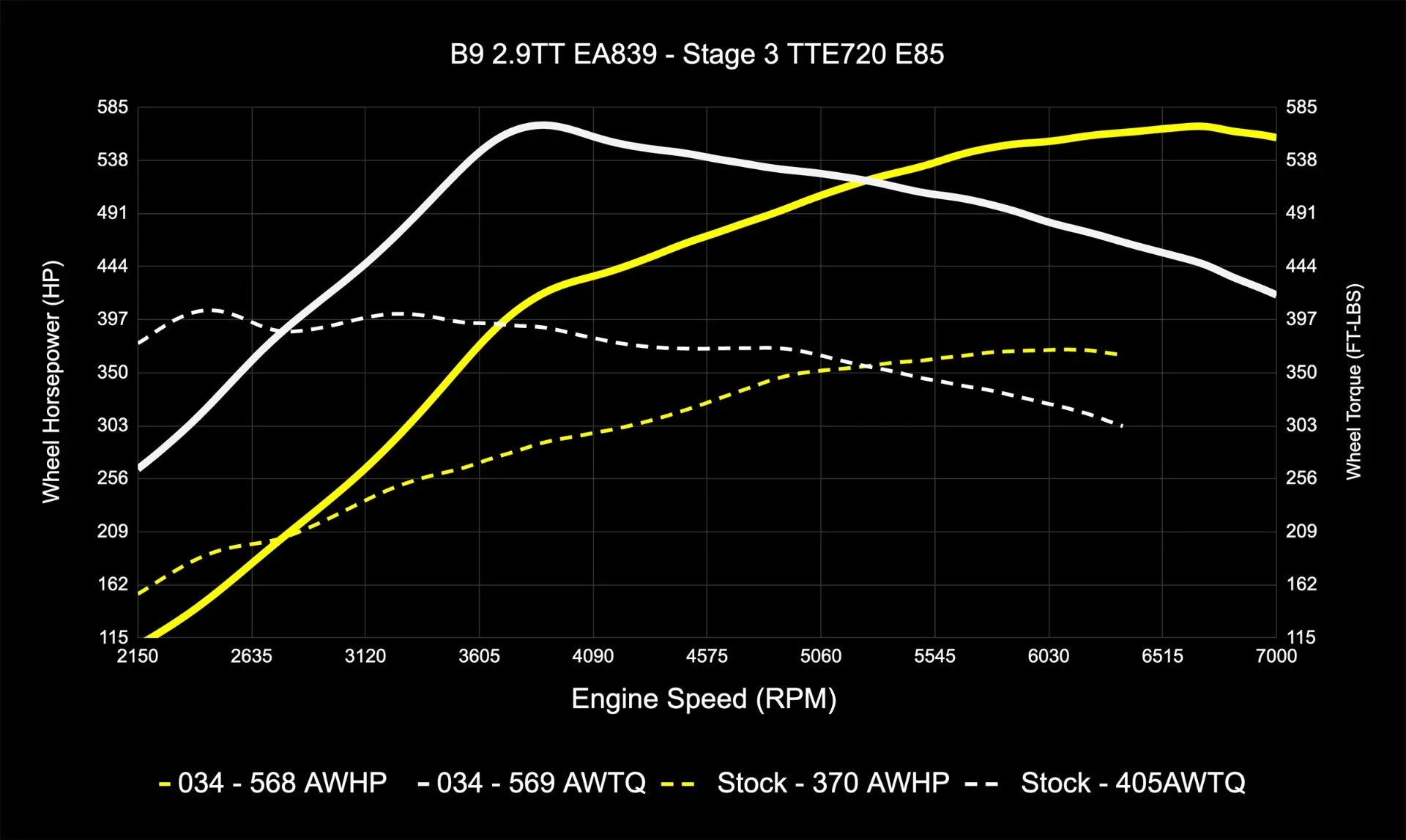

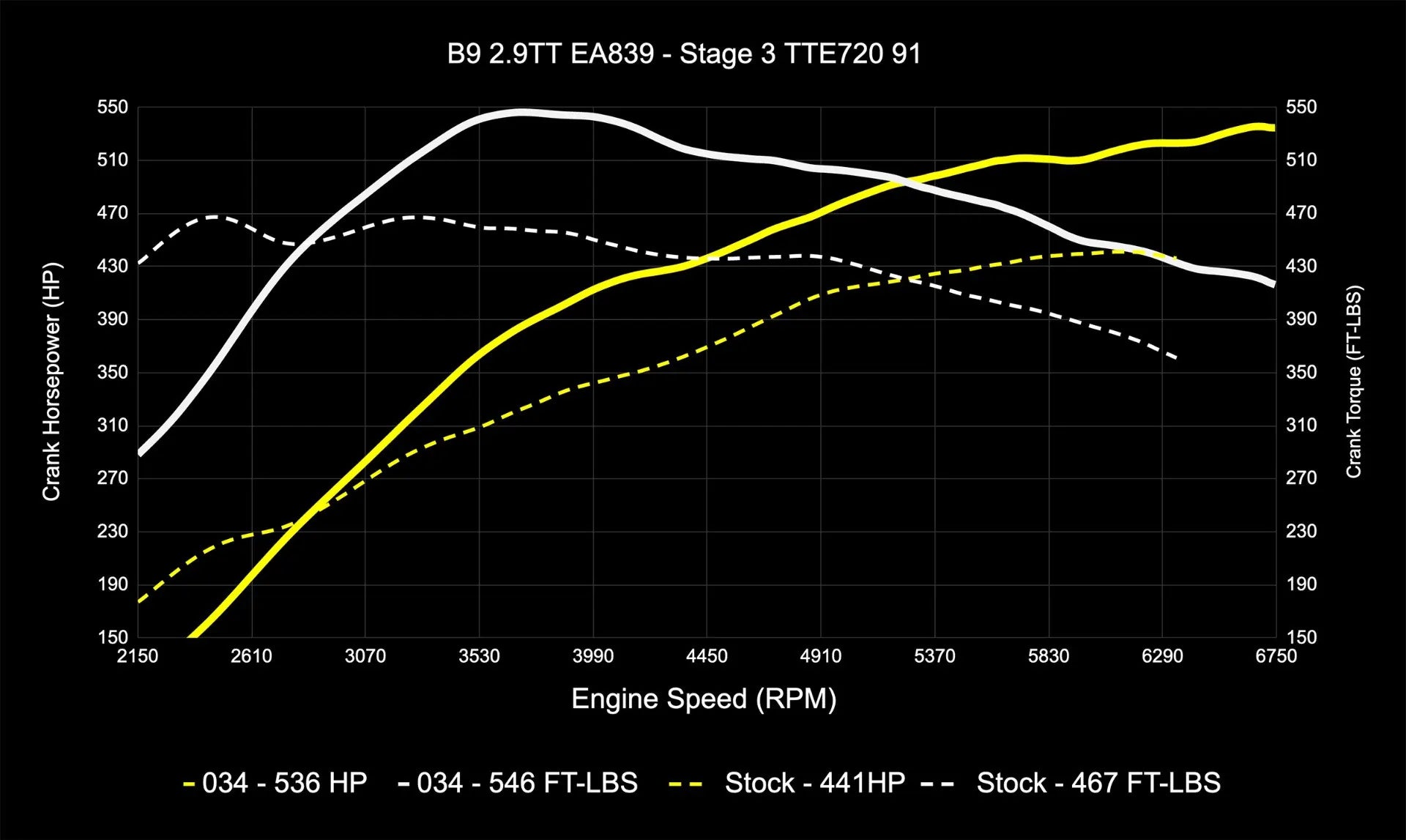

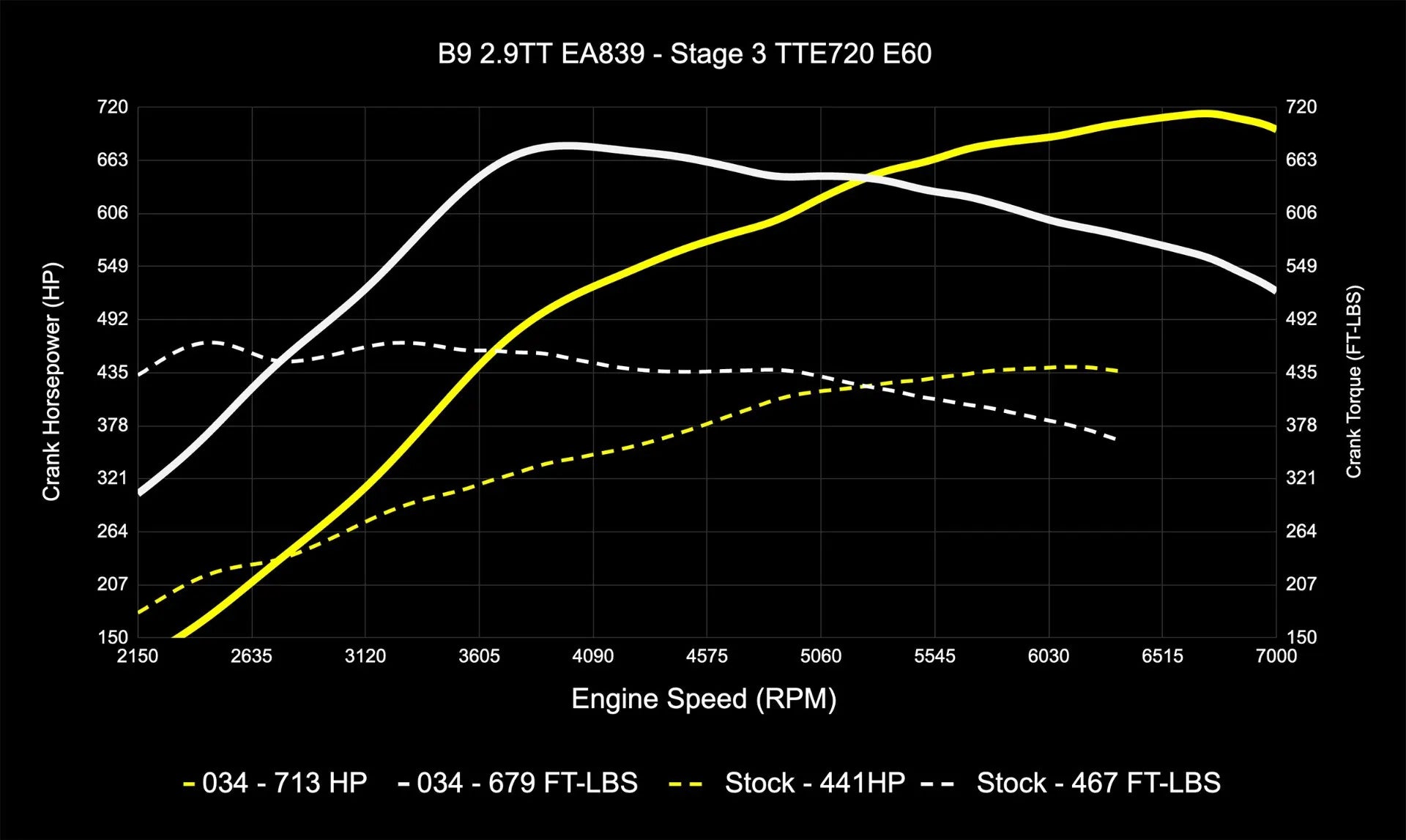

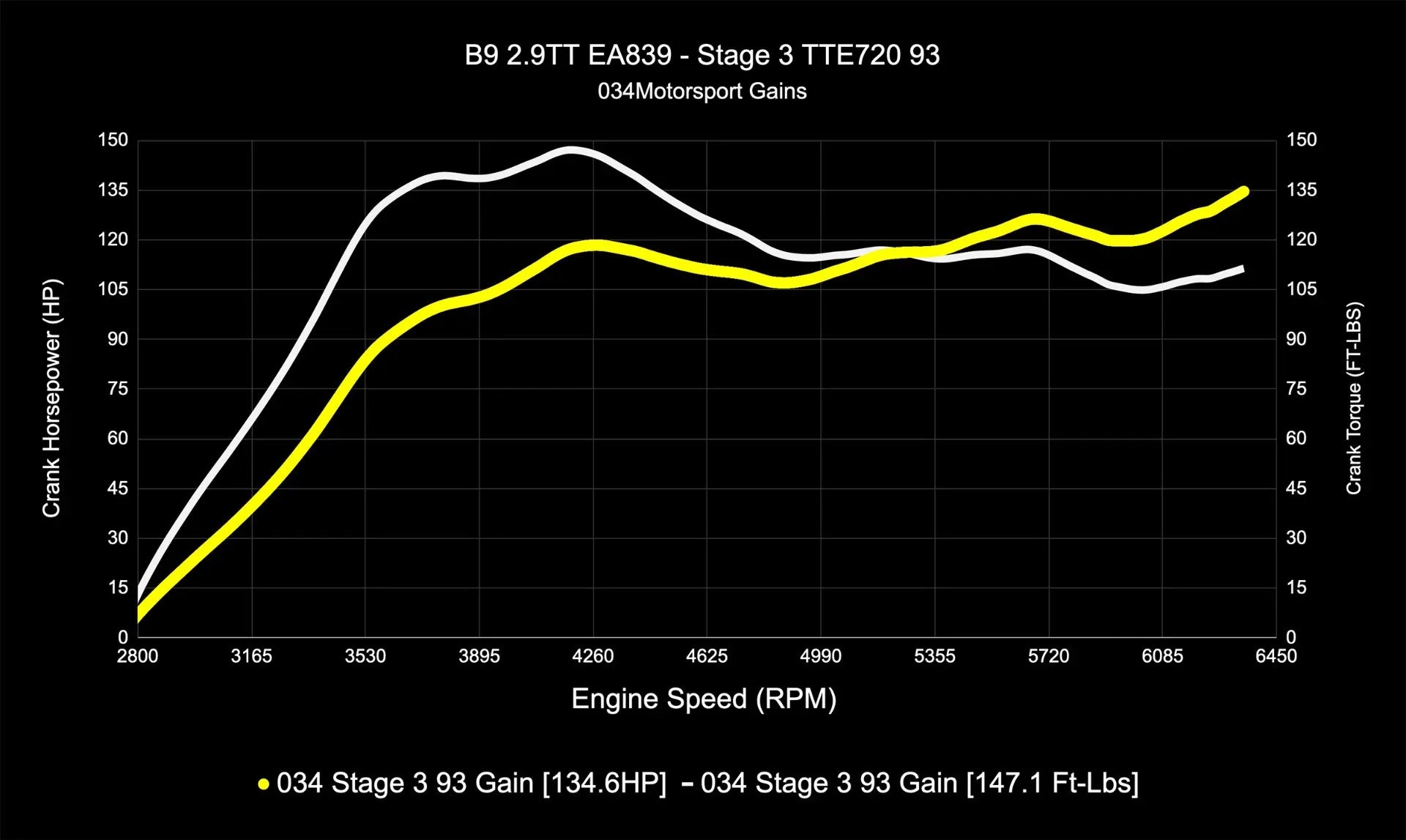

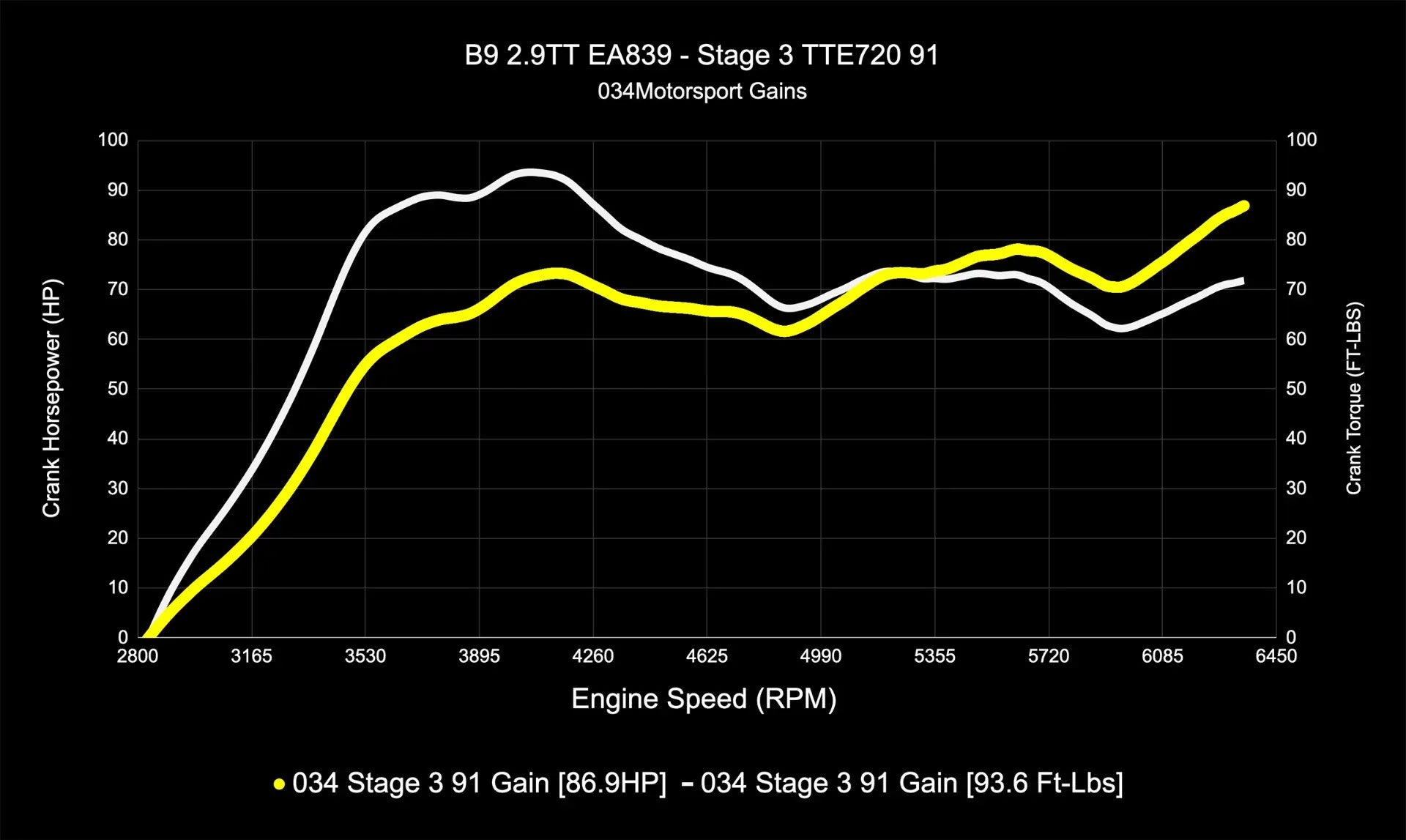

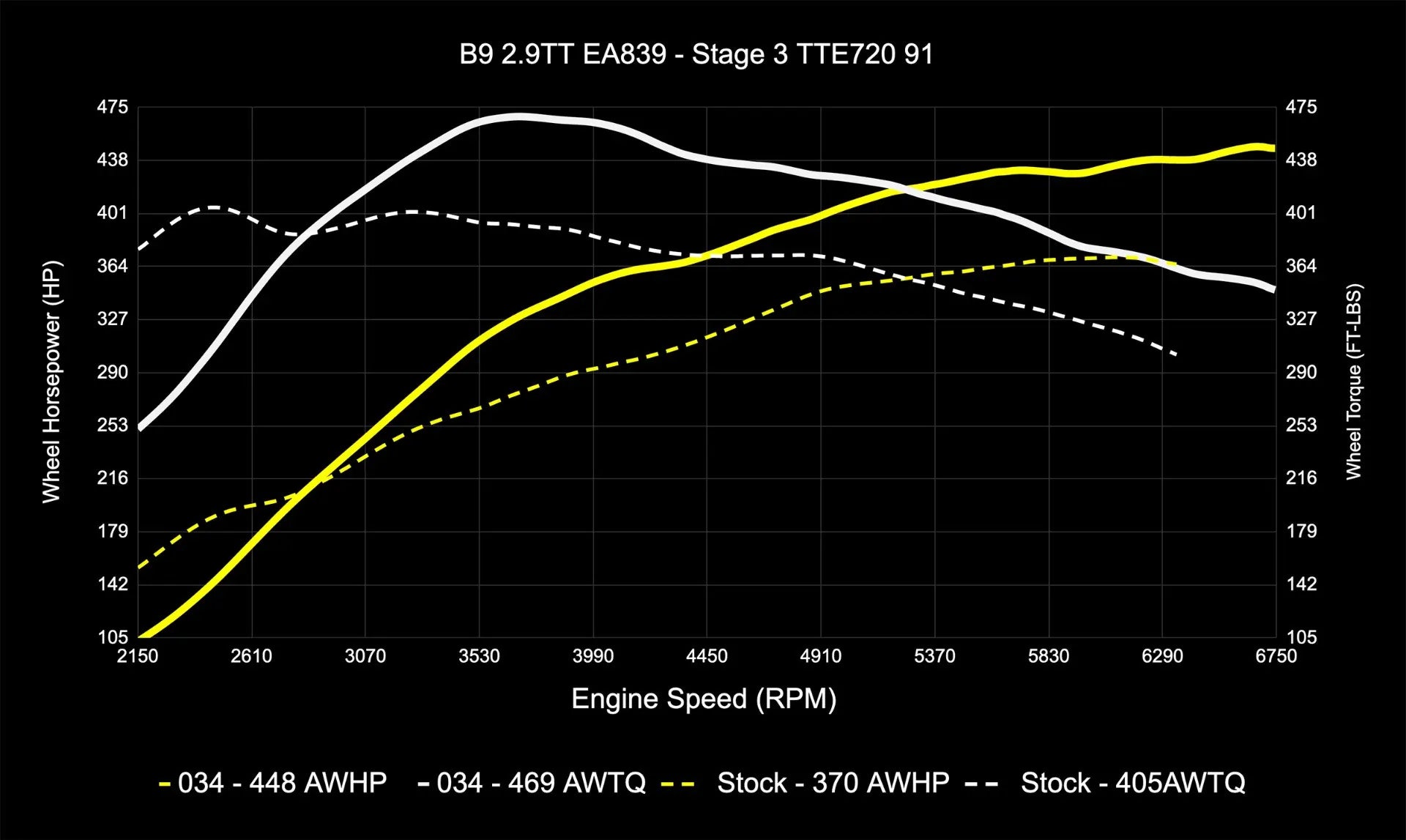

The 034Motorsport Stage 3 Transmission Performance Tuning Software for the AL552 is designed to further improve the drivability and acceleration performance of your Stage 3 Dynamic+ Tuned Audi B9/B9.5 RS4 or RS5. Dynamic+ Stage 3 TCU Software is designed to be used with Dynamic+ Stage 3 ECU Software. 034Motorsport Stage 3 TCU Tuning further optimizes shift points under partial and full throttle to keep the TTE720 Turbochargers in their peak power band, and raises the redline to 7,200 on pump gas and to 7,400 on ethanol for maximum performance with the larger turbocharger!

What's Included:

• ECU Tune(s) Upgrade
• TCU Tune(s) Upgrade
